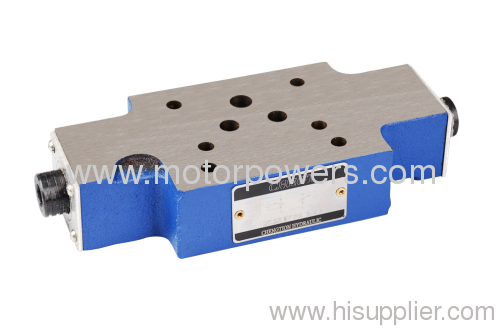

Double throttle/check valve 31.5Mpa

Payment Terms: T/T
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: Z2FS -20
Production Capacity: 100000pc/month
Delivery Date: 2 weeks
Standard or Nonstandard: Standard
Temperature of Media: Normal Temperature
Brand Name: Power
Means of Transport: Ocean,Land,Air
Packing: carton
Power: Hydraulic
Pressure: High Pressure
Media: Oil

Feature:
-Sandwich plate design
-Meter or meter-out control.

Feature of Double throttle/check valve 31.5Mpa:
-Limiting of main or pilot flow with two service ports
-Sandwich plate design
-Meter or meter-out control.

Functional description of Double throttle/check valve 31.5Mpa:
Valves type Z2FS. are double throttle/check valves in sandwich plate design. They are used to limit main or pilot oil flow at one or two service ports. Two symmetrically arranged throttle/check valves limit flow (by means of adjustable throttle spools) in one direction and permit free return flow in the other direction.
Main flow limiting: fitted between the directional valve and the subplate
Pilot flow limiting: fitted between the main valve and the pilot valve.


Section of Double throttle/check valve max.flow 160 L/min:
Double throttle/check valve max.flow 160 L/min


Technical data
Size
10
Flow (L/min)
160
Operating pressure         Mpa
To 31.5
Pressure Fluid
Mineral oil or Phospate ester
Viscosity range   mm²/s
10~800
Temperature range ℃
-30~+80



Ordering datails:
Double throttle/check valve max.flow 160 L/min


Technical data:


Unit dimensions (dimensions in mm)
Double throttle/check valve max.flow 160 L/min


oil port size (dimensions in mm)
Double throttle/check valve max.flow 160 L/min
