Muliti-Circuit Gauge Isolator with 6 meausing points

Price: 10.0~100.0 USD
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: MS2A
Packing: carton
Power: Solenoid
Pressure: High Pressure
Media: Oil
Weight: 1.7 kg
Pressure Fluid: Mineral oil or Phospate est...
Max. back pressure on the tank connection: 1Mpa
Production Capacity: 20000pc/month
Delivery Date: 2 weeks
Standard or Nonstandard: Standard
Structure: Control
Brand Name: Power
Temperature range: -30~+80 ℃
Viscosity range: 10~800 mm²/s

Feature:
-Valve housing with threaded connections
-Flange mounting
-With bulit-in pressure gauge

Functional description of Muliti-Circuit Gauge Isolator with 6 meausing points:

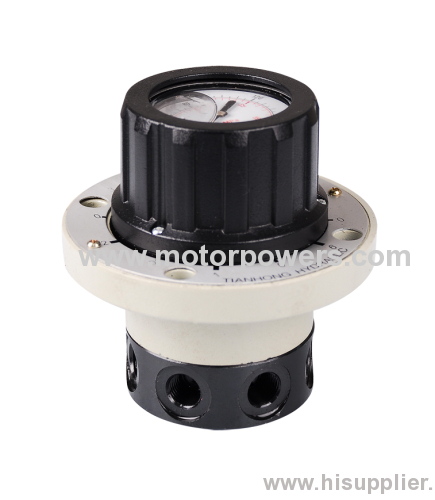

Muliti-Circuit Gauge Isolator type Ms2 with bulit-in pressure gauge(6 meausing points)
With this valve, the rotary knob (1) has a glycerin damped pressure gauge(7) fitted . By turning the rotary knob(1) and the sleeve (3) which is connected to it, until theindicator on the rotary knob(1) points to one of the 6 meausing points, 1 meausing point is connected to the pressure gauge (7). In order to unload the pressure gauge (7) there are zero points between each measuring point. In this way the pressure gauge (7) is connected to the tank (connection T) via the drilling (5) is sleeve (3) and is thereby unloaded. A built-in detent(6) holds each selected position. Which measuring point is connected to the pressure gauge, is indicated by the arrow which is situated on the rim of the rotary knob.


Section of Muliti-Circuit Gauge Isolator with 6 meausing points:
Muliti-Circuit Gauge Isolator with bulit-in pressure gauge     Muliti-Circuit Gauge Isolator with bulit-in pressure gaugeSymbol


Technical data of Muliti-Circuit Gauge Isolator with bulit-in pressure gauge:
Max. operating pressure Mpa
31.5 The maximum permissible working pressure is dependent
on the scale valve of the built-in pressure gauge. The area between the maximum permissible valve (pressure gauge) and the scale valve is marked in red.
Max. back pressure on the tank connection Mpa
1
Indication accuracy of the built-in pressure gauge type MS2
The indication accuracy of the built-in pressure gauge is 1.6% of the red scale value at 20℃. The indication error for each 10℃ increase in temp. is +0.3%, and 0.3% per 10℃ reduction in temp. of the red scale valve.
Pressure Fluid
Mineral oil or Phospate ester
Viscosity range     mm²/s
10~800
Temperature range     ℃
-30~+80
Weight              Kg
1.7



Ordering codes of Muliti-Circuit Gauge Isolator with bulit-in pressure gauge:

Muliti-Circuit Gauge Isolator with bulit-in pressure gauge



Dimensions of Muliti-Circuit Gauge Isolator with 6 meausing points:
Muliti-Circuit Gauge Isolator with bulit-in pressure gauge
